Tutorial · Screens and broadcasting

Pair a screen

Generate the pairing code, open MiaChiesa on the display, then complete its name and playlist.

9 minVerified on 21 Sept 2026Leaders and office staff, VolunteersAvailable
Open in the appDownload PDF
Step 1 of 5
In this guide
Start
1Step 1 of 5 · 2 min

Open Screens

From the dashboard open Screens and select Connect.

Connect opens setup for a new device; existing screens remain in the list.

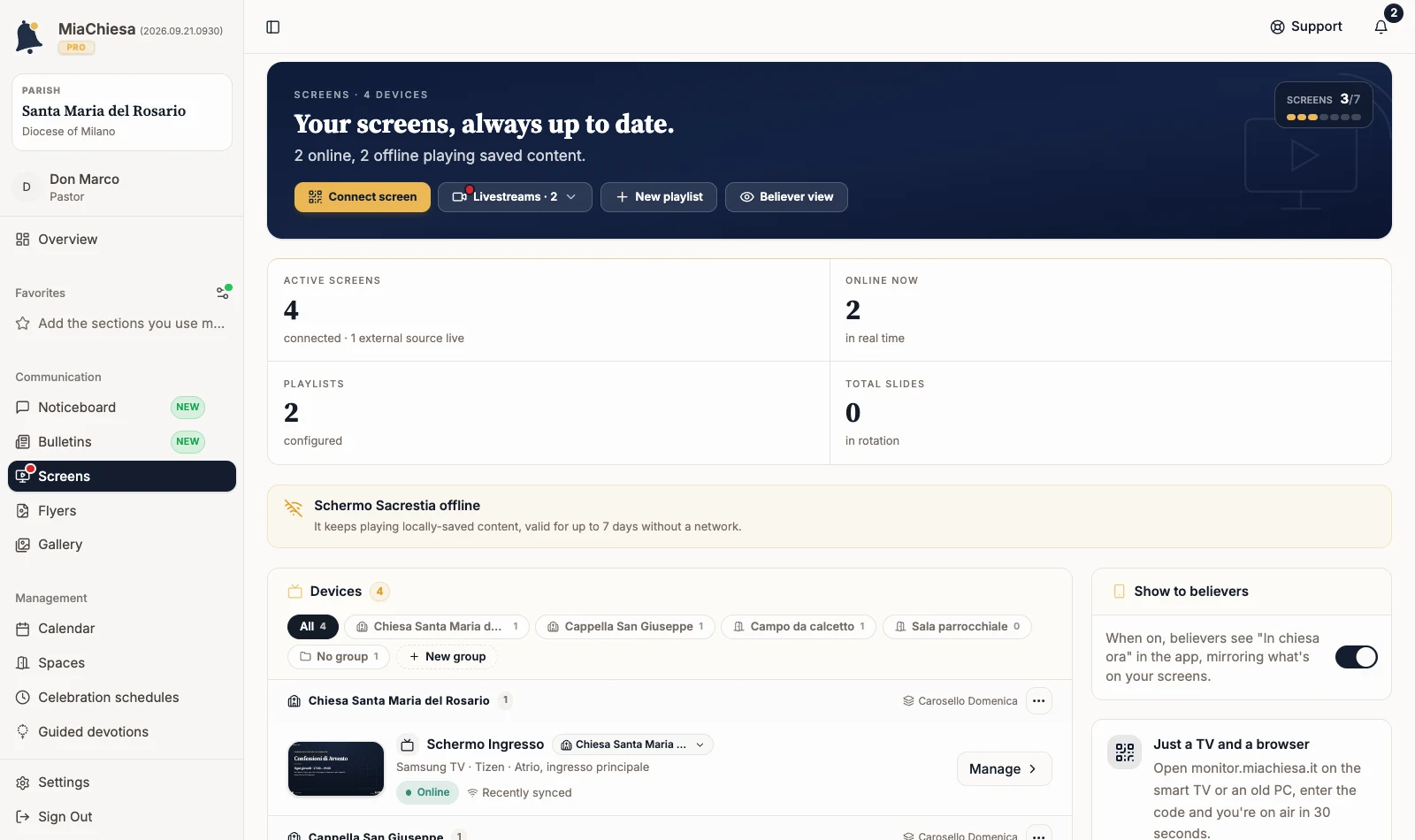

Fig. 1From the dashboard open Screens and select Connect.
2Step 2 of 5 · 2 min

Generate the code

In Connect a new screen, open the Open MiaChiesa on the device step: the page shows a Pairing code and QR code.

The code and QR code identify the same temporary pairing session.

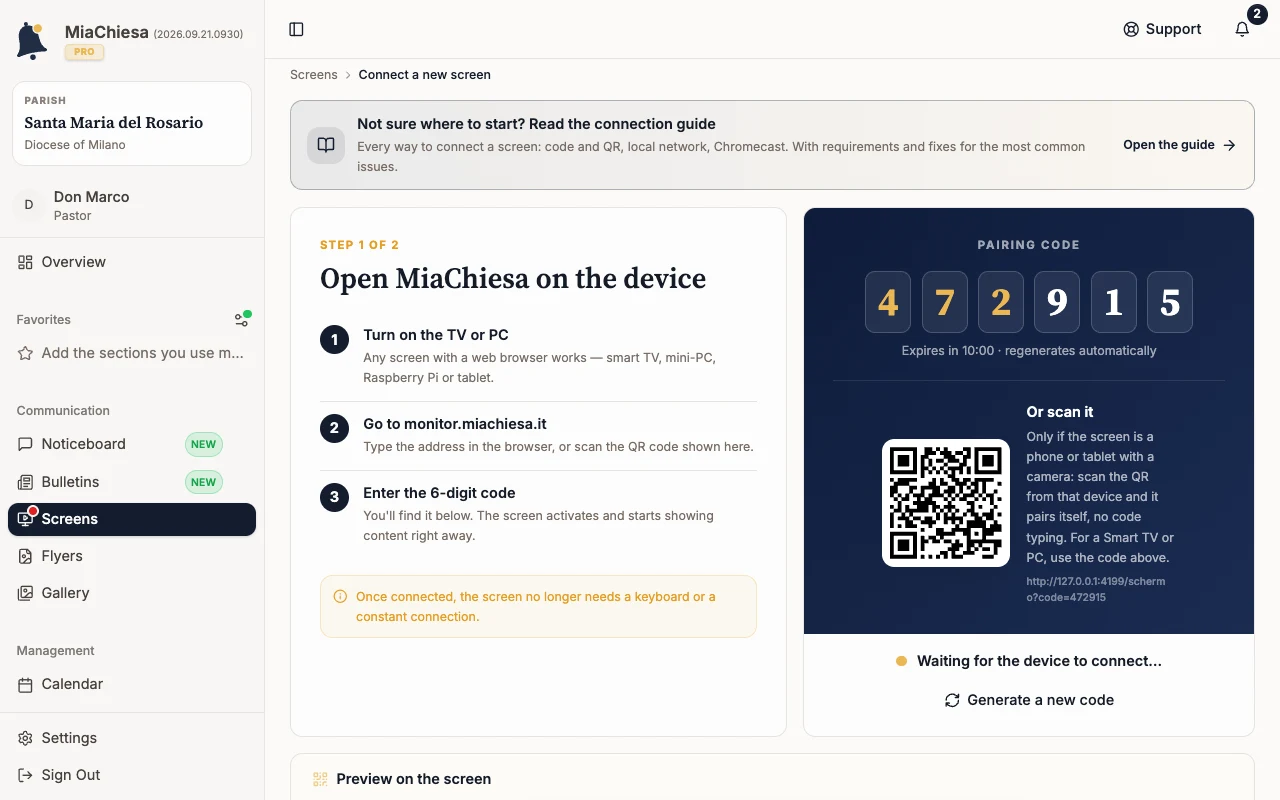

Fig. 2Connect a new screen with Pairing code, QR code and a six-digit code.
Fig. 3The new six-digit code and QR code are ready; the status remains “Waiting for the device to connect…”.
3Step 3 of 5 · 2 min

Open the display

On the television or computer open the shown address and enter the six-digit code before it expires.

Enter the code on the display before it expires; do not reuse it for another screen.

4Step 4 of 5 · 2 min

Configure the device

When it is found, enter its name and location, choose device type and orientation, and assign a playlist.

Name, location and orientation identify the display in the list and support suitable content assignment.

5Step 5 of 5 · 2 min

Activate and verify

Select Activate screen, return to Screens and check status and assignment.

The active status and assigned playlist should appear on the new screen row.

What you have achieved

  • The display appears in the Screens list.
  • Its status, location and playlist can be checked.

Troubleshooting

The code expired

Select Regenerate and use the new code on the display.

Connect is missing

You need Manage screens access in the selected scope.
